Rating:30mA 30VDC
Contact Resistance:50mΩ Max.(initial)
Insulation Resistance:100mΩMin
Operating Force:r 250±50gf
Total Travel:.0.7±0.2mm
Operatong Life:100,000 Cycles Min
Solder specifications:260ofor5 seconds
Operating Temerature:+10℃~+60℃
介绍：

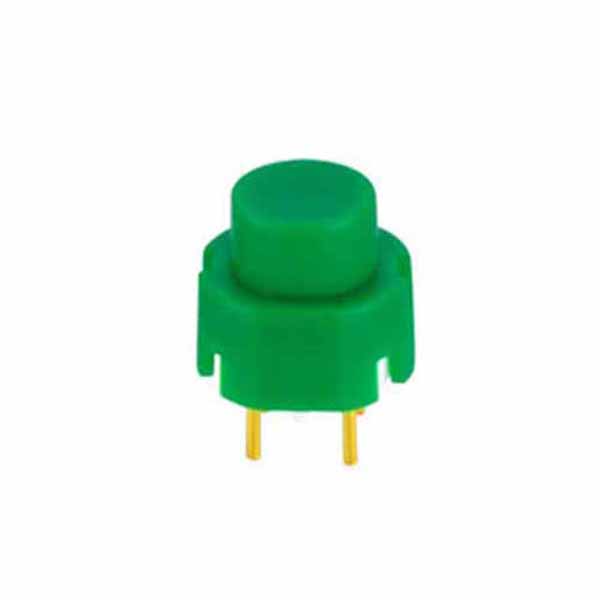

轻触按键开关TS系列，结构简单、功能简单，低电压低电流，在消费类电子产品上很常见的开关。可做带灯和无灯，按键外形有多种结构可选。
