Rating:50mA 24VDC
Contact Resistance:50mΩ Max.(initial)
Insulation Resistance:100mΩMin
Operating Force:r 170±50gf
Total Travel:2.0±0.4mm
Operatong Life:50,000 Cycles Min
Solder specifications:260ofor5 seconds
Operating Temerature:-20℃~+70℃
介绍：

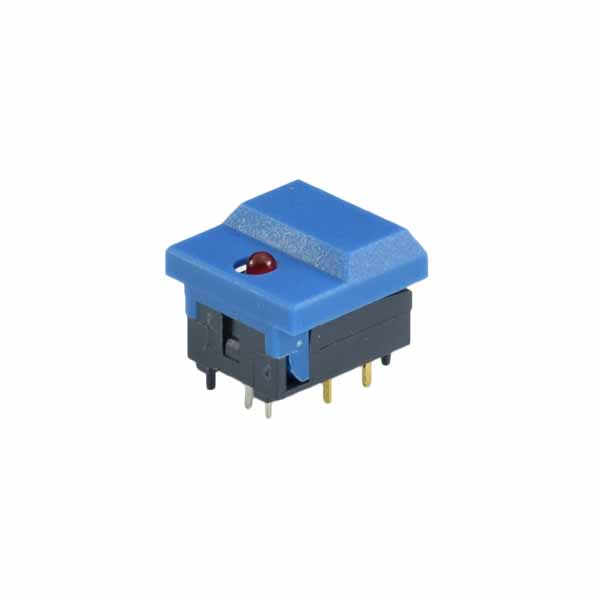

控台按键PB86系列，盖帽尺寸有小盖12*17mm和17*17mm两种，适用于舞台灯光设备，如老虎控台，珍珠控台，512控台等，手感极佳，高寿命，任意定制丝印。
